Curved Without Trim


Size & Ventilation?

The hood and ventilation unit are sold separately. We offer a wide variety of ventilation at each hood size, which will automatically populate based on the size you select. We suggest a hood height of 30” – 36” from the cooktop, however, some ventilation systems allow for lower than 30. Please review your local building code prior to making your selections.


Crown molding is used to reach the ceiling after installation. Without molding at the top of the hood, there will be a gap between the ceiling and the hood upon completion of the installation. Our crown molding is 3” in width and is installed to cover the gap. If installed in our facility, there will remain a gap between the crown molding and the ceiling.

Size Modifications

This can be specific to just VAH and not interrupt the TradeWinds Or Zline

For 8’ ceilings, 30” hood height is recommended, for 9’ ceilings, 36” – 42” hood height is recommended, for 10’ ceilings, 48” hood height is recommended. Please consult your local residential housing code requirements prior to purchasing.

Our normal lead time is approximately 20-24 business days. With rush manufacturing we will build your hood in 15 business days.



Need Some Help?

Call: (877) 847-0405

Or Schedule A Video Chat
SKU: CNT Category:

Our newest product launch represents the most recent trend in wood hoods, with a trimless, timeless, curved style hood. This hood style utilizes a two-piece construction, with the back panel being mounted onto the wall and the chimney / apron portion being hung using a cleat system. This installation method allows the ventilation to be inspected where necessary. The trimless hood type is true to size. A 36″, for example, will be exactly 36″ in width.

All Hoodsly wood range hoods can be trimmed up to 6″ for the perfect fit and are made from cabinet grade plywood with a white maple veneer. For the trimless models, standard installation practice will leave a 1″ gap between the ceiling and the hood. To cover this gap, we recommend utilizing crown molding.

Recommended for use Tradewind hood liners, which will be pre-installed into the hood for simplicity of installation. If you are intending to use different ventilation, we suggest verifying your model number with our team prior to purchase. The mounting of the ventilation will be different with this model than our standard two-piece construction.


, , , , , , , , , , , , ,

Need Some Help?

Custom Color Match Details

Please complete the downloadable form once your order is complete and send the sample to Hoodsly, Attention Hollie, 7830 Commerce Drive, Denver, NC 28037. Download Form Here

– We are able to match paint from color samples, cabinet doors, paint chips, or other painted products.
– We are not able to match stains, tile, high gloss products, or non-solid colors. If we determine we cannot match the color based on the sample received, we will notify you upon receipt and determine the path forward. A full refund will be provided if that is desired at that time.
– The lead time begins upon receipt of the sample. The lead time is 20-25 business days from the receipt date at our facility.
– Your paint match is guaranteed for consistency in color and sheen. If there is an issue with the match once received, please notify us immediately.
– We do not keep extra paint for your match on-hand for longer than 4 weeks after delivery. Please consider ordering crown molding or additional trim at the time of your purchase if you may wish to add those items in the future. There may be an additional paint match fee applied if the items are needed after the paint is disposed of.

How long does it take to receive my hood after I order it?

All of our hoods are made to order, we do not keep any in stock. For non-custom orders, our standard lead time is 20-25 business days. Once the hood is made we use R&L Carriers to ship. For any custom orders, the lead time is 3-5 weeks.

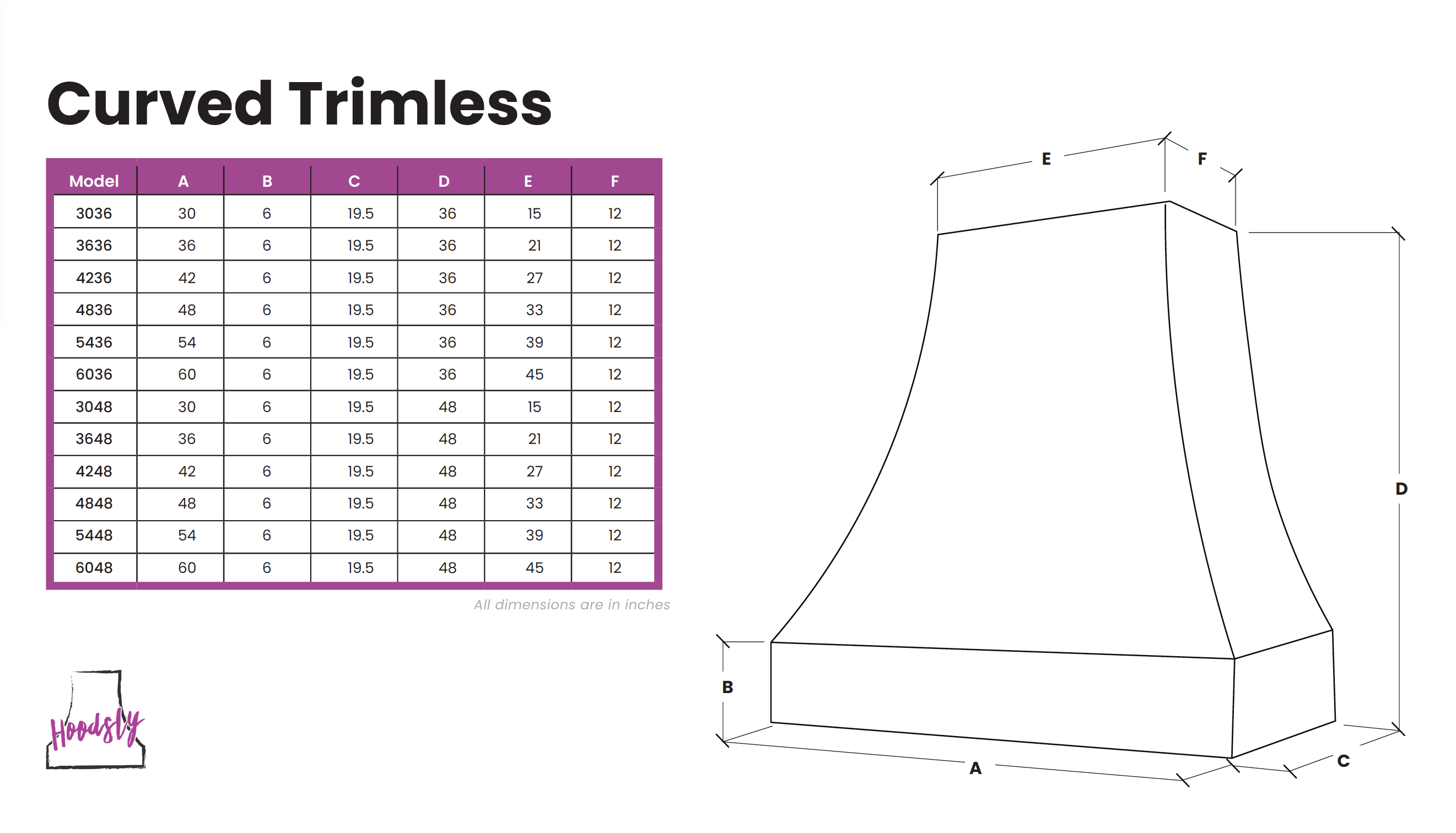

What are the interior dimensions of our hoods?

Our hoods are made of 3/4″ plywood material with a maple veneer. In order to determine the interior dimensions, you will take the size hood that you are looking at and you will subtract 1.5″. For instance, for a 36″ hood (please note the total exterior width for this option is 37.5″), the interior width would be 34.5″ wide, the standard interior depth is 18″ but we do offer the option for an increased depth to either 20.5″ or 22.5″. For all of our hoods, the apron height is 8-1/4″ tall.

Will my insert work with your hood?

To determine if your insert will fit you must look at the interior dimensions of the hood. We use 3/4″ thick material for the construction of the hoods. To determine the interior width you would look at the size hood you are interested in and subtract 1.5″. For example, for a 48″ hood (please note total exterior width for this option is 49.5″) the interior width would be 46.5″ wide. Then you must determine the interior depth. We have three options 18″, 20.5″ or 22.5″. Make sure to purchase the option that will best accommodate your insert. You must also look at height. The apron of all of our hoods is 8-1/4″ tall. If your insert is taller than this I would recommend reaching out to us directly so we can determine if it will work.

What are your hoods made of?

Our hoods are made plywood with a maple veneer. We have some options that include a walnut band.

Do you offer custom paint matches?

We can custom match paint to your specific color for an additional $650 on top of the raw cost of a hood. In order to do this, we require that you mail a physical sample of the color desired to our factory to be matched to. Please write your name or order number on the back of the sample.

Can I get the hood without the trim installed?

Yes, please either call us directly or put a custom note in your order if you want to do this. Please note that our hoods are a two-piece construction to allow for easy installation. Because of this, we highly recommend installing the trim as there will be a seam between where the chimney and the apron of the hood meet.

What are total exterior dimensions of your hoods?

We use 3/4″ thick trim on our hoods. To determine total exterior width you will add 1.5″ to the size hood you are interested in. For example, for a 30″ wide hood, the total exterior width will be 31.5″.

What height hood do I need for my ceiling height?

We recommend 30″-36″ between your cooktop and the bottom of the hood. Typically, if you have 8′ ceilings we would recommend a 30″ tall hood. With 9′ ceilings we recommend a 36″ tall hood and with 10′ ceilings, we recommend a 48″ tall hood

Is the hood trimmable?

Yes, every hood is trimmable by up to 6″. You can do this yourself or we are happy to cut it down before we ship it for an additional $125. Please note that you cannot cut the hoods by more than 6″ as it will threaten the structural integrity of the hoods.

Install Instructions

Download Installation Manual
